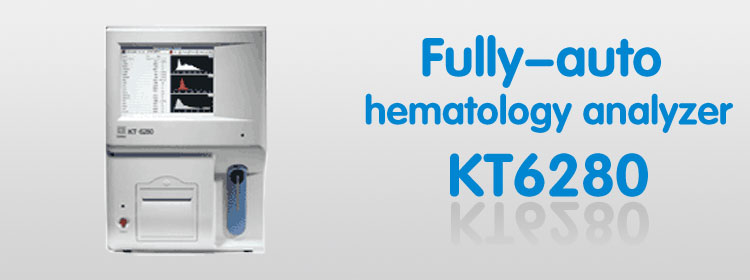

Index  »  Products  »  Testing Category  »  Hematology analyzer  »  KT6280 Fully-auto hematology analyzer
| PostDate:2010-12-27 | Click:



Specifications

Test principle: electrical resistance for counting and SFT method for HGB

Test flow: fully auto and the blood don’t need dilute or other process

Clot clear: high voltage burn and high pressure flush

Parameter: 3 part differentiation of WBC,20 parameters + 3 histograms

Sample volume: 9.8μl peripheral blood or venous blood

Test channel: two channels

Throughput: 60 samples/hour

Language: English

QC mode: 、 -R、 -B、L-J, auto draw and print QC figure

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control

Reference range type: newborn、children、male、female and universal

Reagent: provide original reagent

Memory: save more than 30000 sample’s detail results including histograms

Display: Large colour LCD, show all parameters and histograms at same screen

Input and output: keyboard、mouse、Parallel Port、RS232 serial port, can be connected to computer

Printer: Inner thermal printer,can be connected to external computer and printe



Technical parameter

Sample volume: normal mode: 9.8μl, dilution mode: 20μl

Aperture diameter: WBC: 100μ m, RBC、PLT: 70μ m

Throughput: 60 samples/hour

Clot clear: high voltage burn and high pressure flush

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control

QC mode: 、 -R、 -B、L-J, auto draw and print QC figure

Display: Large colour LCD, show all parameters and histograms at same screen

Memory: save more than 30000 sample’s detail results including histograms

Input and output: keyboard、mouse、Parallel Port、RS232 serial port, can be connected to computer

Printer: Inner thermal printer,can be connected to external computer and printer

Test parameter

WBC Lymph# Mid# Gran# Lymph% Mid% Gran% RBC HGB HCT MCV MCH MCHC RDW-SD RDW-CV PLT MPV PDW PCT P-LCR WBC Histogram RBC Histogram PLT Histogram
