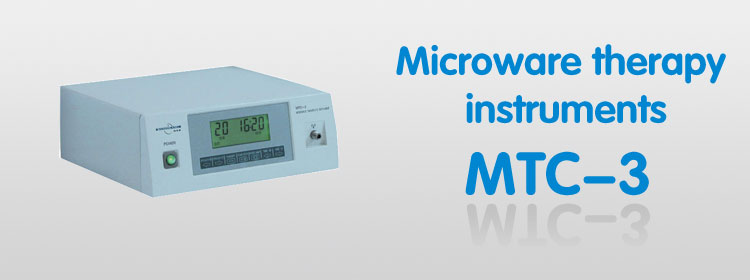

Index  »  Products  »  Therapeutic Category  »  Microware therapy instrument  »  MTC-3 Microwave therapy instruments
| PostDate:2010-12-9 | Click:


Features

The operation of this equipment is convenient, treatment time is short and the patients has suffers small anguish. Strong coagulate power, no tissue charring, swift haemostasis, no spurt, no infection, good reparation of raw surface.

1 The twenty-year dedication of the microwave research group of Shanghai University

2 environmental protection design to stop microwave energy disclosure

3 keep patients’ health and guarantee doctors’ security

4 double channel output and can treat two patients simultaneously

 Application range:

Physical therapy department: Arthritis, scapulohumeral periarthritis, diminish inflammation of tendon and node, cervical spondylosis, stiff neck, sprain and contusion, strain of lumbar muscles, lumbar disc herniation, sciatica, rheumatism , myalgia



Technical parameters

▲Microwave frequency:2450MHz±50 MHz

▲output power: therapy 0-100W adjustable physiotherapy 0-100W adjustable

▲output time: therapy 0-100s adjustable physiotherapy 0-100min adjustable

▲output mode: Concentric cable transmission line connects with radiator

▲input voltage: 220V 50HZ AC

▲overall power: ≤250W

▲load-matching impedance: 50Ω

▲Environment temperature:+5℃+40℃

▲Humidity range:30%-80%

▲Range of atmosphere pressure:500hpa-1060hpa

▲Classification of equipment safety: this instrument belongs to equipment ofⅠclass B type

Microwave energy leakage comparison

▲Nation-forced microwave leakage:<2mW/cm2

▲Leakage of MTC-3 series instruments: <0.05mW/cm2

▲Standing wave parameters of radiator: <3.0dB

▲useless radiation of radiator: <0.1mW/cm2

▲take mobile emission power for reference: <0.6mW

Size and weight

▲Table MTC-3: 443*388*166(mm) ≥11kg
